You load the washer, press Start… and suddenly your cycle stops with the Whirlpool washer error code E01 F06 flashing on the display. Frustrating? Definitely. But in many cases, this issue can be diagnosed — and sometimes even fixed — without replacing the entire appliance.
This guide explains what the Whirlpool washer error code E01 F06 actually means, why it happens, and how you can safely troubleshoot the problem step by step.

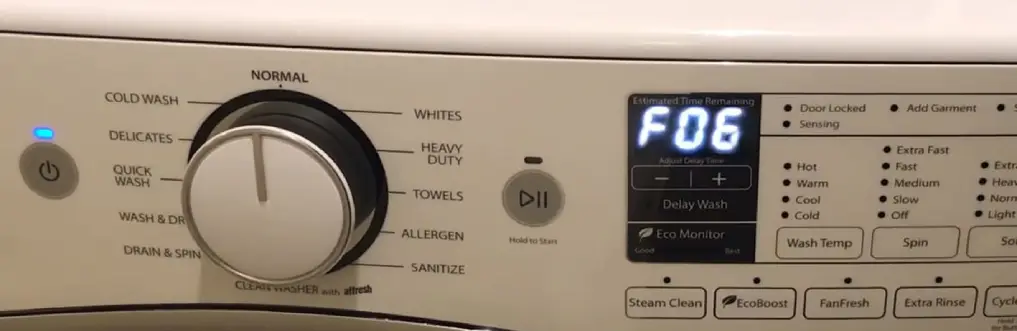

What Does Whirlpool Washer Error Code E01 F06 Mean?
The Whirlpool washer error code E01 F06 usually indicates a communication failure between the Motor Control Unit (MCU) and the Central Control Unit (CCU). In simpler terms, your washer’s main brain is struggling to “talk” to the component responsible for spinning the drum.
Because the washer cannot properly control motor speed or direction, it stops the cycle and displays the Whirlpool washer motor control error to prevent further damage.
Common models that may show the Whirlpool washer error code E01 F06 include front-load washers with digital displays and advanced motor systems.
Why Does This Error Happen?
Understanding the root cause makes it much easier to decide how to fix E01 F06 Whirlpool washer issues effectively.
Here are the most frequent reasons:
- Loose or damaged wiring connections
- Faulty Motor Control Unit (MCU)
- Defective drive motor
- Main control board malfunction
- Power surge or voltage instability
- Moisture intrusion inside electronic components
Sometimes, the Whirlpool washer motor control error appears after a sudden stop mid-cycle or during heavy loads.
Quick Troubleshooting
Before calling for Whirlpool washer repair service, check the following possibilities.
| Possible Cause | Symptoms | DIY Action | Difficulty |
|---|---|---|---|
| Loose wire connection | Washer stops during spin | Unplug washer and inspect harness | Easy |
| Motor control unit failure | Error appears repeatedly | Test or replace MCU | Medium |
| Drive motor issue | Drum won’t rotate | Check motor resistance | Medium |
| Control board glitch | Error appears randomly | Perform power reset | Easy |
| Voltage fluctuation | Error after outage | Use surge protector | Easy |
This table helps you prioritize steps when dealing with the Whirlpool washer error code E01 F06.
Step-by-Step: How to Fix E01 F06 Whirlpool Washer
If you feel comfortable working with appliances, try these safe troubleshooting steps.
1. Perform a Power Reset
Sometimes the Whirlpool washer error code E01 F06 is just a temporary electronic glitch.
What to do:
- Unplug the washer from the outlet.
- Wait at least 5 minutes.
- Plug it back in and run a short cycle.
If the Whirlpool washer motor control error disappears, the issue was likely software-related.
2. Check Wiring Connections
Loose harness connections are a very common reason behind the Whirlpool washer error code E01 F06.
Steps:
- Disconnect power completely
- Remove the rear or top panel
- Inspect wires between the motor, MCU, and CCU
- Reseat any loose connectors
Even slight vibration over time can cause this problem.
3. Inspect the Drive Motor
If the drum struggles to spin, you may need to investigate the motor itself when learning how to fix E01 F06 Whirlpool washer problems.
Look for:
- Burning smell
- Visible damage
- Unusual noise during rotation
Testing motor resistance with a multimeter can confirm whether replacement is needed.
4. Examine the Motor Control Unit
A failing MCU is one of the most typical causes of the Whirlpool washer motor control error.
Signs include:
- Washer fills but never spins
- Error appears immediately after pressing Start
- Cycle cancels automatically
Replacing the MCU can restore normal communication and clear the Whirlpool washer error code E01 F06.
5. Consider the Main Control Board
If all other components seem fine, the CCU itself may be the issue. This is more advanced repair territory.
At this point, many homeowners choose professional Whirlpool washer repair service rather than risk installing expensive electronics incorrectly.
When You Should Call a Professional
While basic troubleshooting is possible, some situations require expert help.
You should book Whirlpool washer repair service if:
- The Whirlpool washer error code E01 F06 keeps returning
- You notice burning smells or sparks
- The washer trips breakers
- You are not comfortable working with electrical components
- Multiple parts may need testing
Technicians have diagnostic tools that quickly identify whether the Whirlpool washer motor control error is caused by wiring, motor failure, or control board defects.
How to Prevent Whirlpool Washer Error Code E01 F06
Prevention can save time, money, and frustration.
Follow these simple tips:
- Avoid overloading the washer drum
- Use a surge protector to stabilize voltage
- Keep the laundry area dry and well-ventilated
- Schedule periodic appliance maintenance
- Address unusual noises early
These habits reduce the likelihood of seeing the Whirlpool washer error code E01 F06 again.
Final Thoughts
Seeing the Whirlpool washer error code E01 F06 doesn’t always mean a major breakdown. In many cases, it’s a communication issue that can be solved with a reset or connection check.
However, if you’ve tried basic steps and the Whirlpool washer motor control error persists, booking a trusted Whirlpool washer repair service is often the fastest and safest solution. Professional diagnosis ensures your washer runs efficiently — and prevents costly damage down the line.
